pet food pellet production line Floating Fish Feed Pellet Mill single Screw Extruder for Fish Food
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | MIKIM |
| Sertifikasi: | CE |
| Nomor model: | DGP-40,DGP-60,DGP-70,DGP-85,DGP-90 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | $1500.00 - 35000.00/ Set |
| Kemasan rincian: | dikemas dengan paket ekspor kayu atau dimuat dengan kontainer |
| Waktu pengiriman: | 7-10 hari kerja |
| Syarat-syarat pembayaran: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Menyediakan kemampuan: | 300 set per bulan |
|
Informasi Detail |
|||
| Cetakan: | Berbagai bentuk dapat dipilih | bahan makanan: | daging, kacang, sayuran dan sebagainya |
|---|---|---|---|
| Suku cadang: | 1 set | Operasi: | Operasi Otomatis Sederhana |
| Motor: | Merek Cina, Siemens, ABB | Jenis Pemrosesan: | Ekstrusi |
| Inveter: | ABB | ||
| Menyoroti: | floating fish feed pellet mill,single screw extruder for fish food,pet food pellet production line |
||
Deskripsi Produk

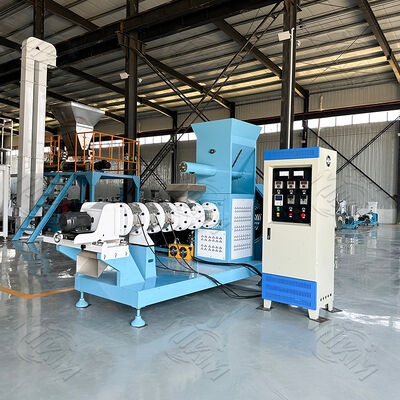

Floating Fish Feed Pellet Mill Single Screw Extruder for Fish Food
Complete production line flow: Grinding → Mixing → Extruding → Drying → Flavoring → Cooling → Packaging
Custom layout designs available according to your factory dimensions for pet food and fish feed production.
Main Equipment and Specifications
Hammer Mill
- Applicable for crushing raw materials in pet feed, aquatic feed, and food industry processing
- Adjustable hammer blade and screen mesh gap for coarse and fine grinding
- Unique hammer blade installation with high-precision dynamic balance for stable operation and low noise
- Axial air inlet system and water drop-shaped grinding chamber increase efficiency by over 30%
- Cemented carbide technology extends hammer blade service life
- Magnetic separation feeder with adjustable speed for feeding, air supplement, and iron removal
Mixer
- Thoroughly mixes different powdered raw materials with short discharge time and no residue
- Large bottom door design for easy maintenance and replacement
- Rubber sealing ring prevents leakage
- Top spray system for easy liquid addition
- High mixing uniformity (CV ≤ 5%) with mixing time of 30-120 seconds per batch
- Material: Carbon steel with Siemens/WEG motor and SKF bearings

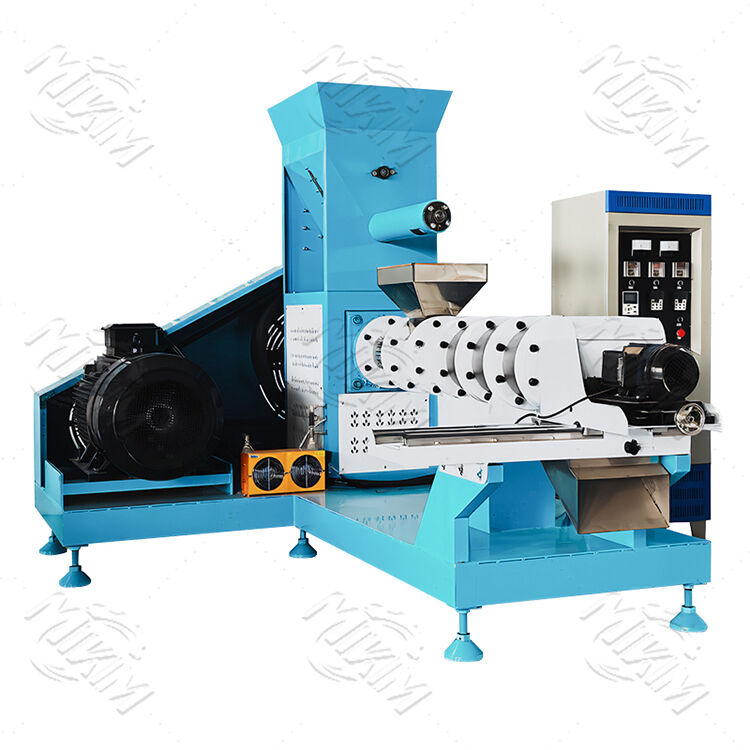

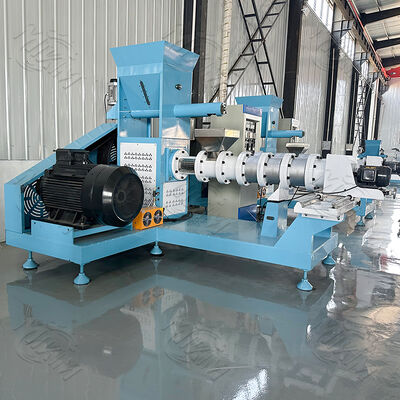

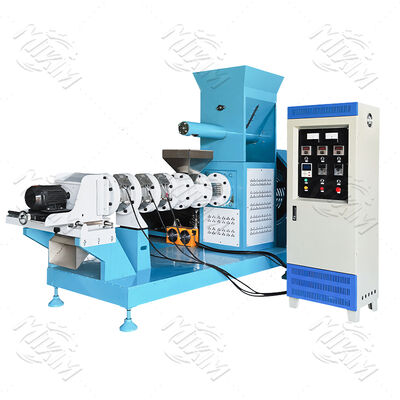

Fish Feed Pellet Extruder
- Screw material: Special wear-resistant alloy; Barrel material: 45# steel
- Dual-shaft differential speed conditioner ensures thorough, uniform conditioning
- Stainless steel conditioner construction for extended service life
- Forced lubrication system protects bearings and transmission components
- Barrel temperature display for easy adjustment
- Energy-efficient design reduces consumption and production costs
Automatic Drying Box
- Four-layer mesh belt design minimizes material damage
- Multi-layer hot air flow structure for enhanced drying performance
- Insulated chamber with 95% hot air circulation efficiency
- Adjustable drying temperature and material residence time
- Material contact parts: Stainless steel; Outer chamber: Insulating material
Double Drum Seasoning Machine
- Optimized double helix rotor design for uniform material distribution
- No material retention, breakage, or dead zones during mixing
- Fat and oil addition capability improves extruder performance
- Enhanced feed absorption and reduced water pollution
- Material: Stainless steel cylinder with carbon steel frame
Final Pellet Specifications
Produces round and various other shapes with diameters ranging from 0.9-15mm (achieved by replacing molds)
Technical Parameters
| Parameter | DGP-100 | DGP-120 | DGP-135 | DGP-160 | DGP-200 |
|---|---|---|---|---|---|
| Capacity (kg/h) | 500 | 600-700 | 800-900 | 1000-1200 | 1800-2000 |
| Main Motor (kw) | 37 | 55 | 75 | 90 | 132 |
| Feeder Motor (kw) | 1.5 | 1.5 | 1.5 | 2.2 | 3 |
| Cutter Motor (kw) | 1.5 | 1.5 | 2.2 | 2.2 | 3 |
| Screw Diameter (mm) | φ100 | φ120 | φ135 | φ160 | φ200 |
| Machine Size (m) | 2×2.8×1.2 | 2.2×2.9×1.2 | 2.2×3.1×1.37 | 2.3×3.15×1.38 | 2.35×3.45×1.65 |
| Weight (kg) | 1500 | 1800 | 2000 | 2500 | 3200 |
Packaging and Shipping
MIKIM ensures machine safety during transportation with plastic film wrapping to prevent moisture and rust,
metal frame fixation, and container reinforcement. Comprehensive support throughout the shipping process.
Our Services
- Detailed introduction of wet-type advanced design fish food extruder based on client capacity requirements
- Comprehensive information sharing including detailed pictures, videos, and technical data
- Custom design of floating fish food extruding lines
- Assistance with suitable floating fish feed formulations
- Comprehensive instruction manuals and operational videos
Customer Visits
Qualifications and Awards
Ingin Tahu lebih detail tentang produk ini
